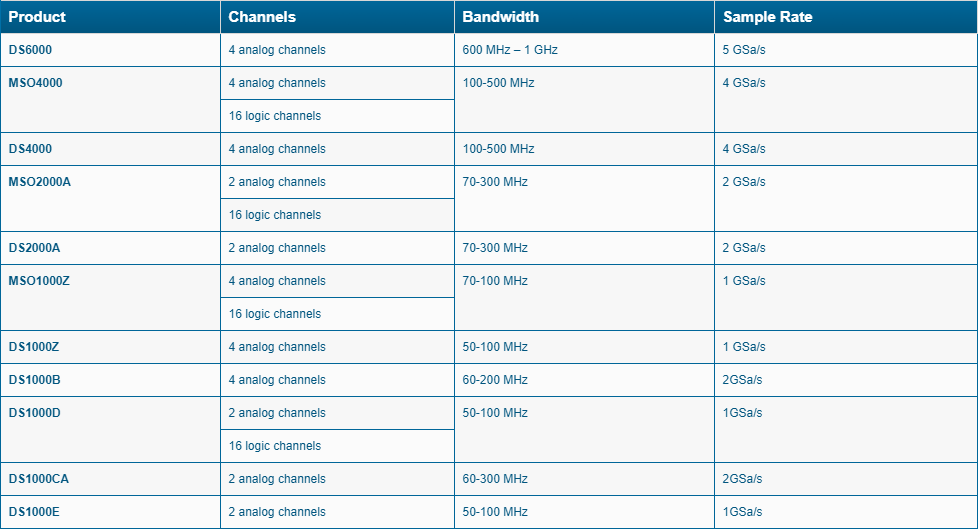

DIGITAL OSCILLOSCOPES

We have a complete line of digital oscilloscopes to help you achieve faster debugging and testing of your newest designs. Compare our powerful functions and compact designs to your current scope and you’ll see we offer state-of-the-art technology. Compare the prices and you’ll be surprised how much you can save.

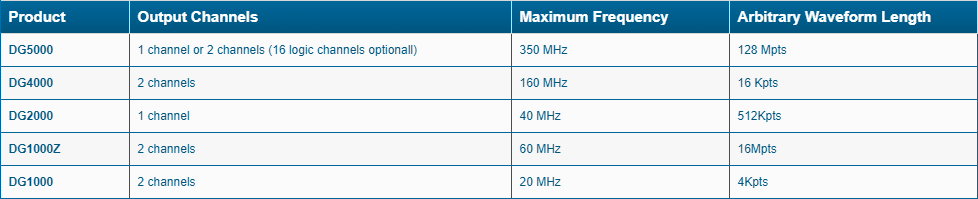

WAVEFORM GENERATORS

Rigol Function / Arbitrary Waveform generator uses Direct Digital Frequency Synthesis (DDS) technology to generate high accuracy and high stability waveforms. It can also generate programmable pulse signals as well as the standard wave functions. Additionally, the arbitrary waveform feature allows engineers to generate any desired waveform with UltraWave, our free waveform editing software. Actual signals can also be captured through an oscilloscope, then downloaded to a signal generator for output. The digital sampling technology and the Direct Digital Frequency Synthesis technology enable engineers to build any required waveforms for circuit design verification.

SPECTRUM ANALYZERS

Rigol's DSA700 and DSA800 series products are compact, high performance spectrum analyzers with a redesigned interface focused on efficient analysis. The combination of the widescreen construction, new key layout, and feature set make these spectrum analyzers great benchtop or field tools with the digital horsepower to tackle demanding production wireless applications. The all-digital IF ensures the superior and stable performance. Use the DSA700 Series for leading cost performance or get the DSA800 Series for high performance testing and measurement capabilities. Add a tracking generator to test RF components or insertion loss to the DSA800 series.

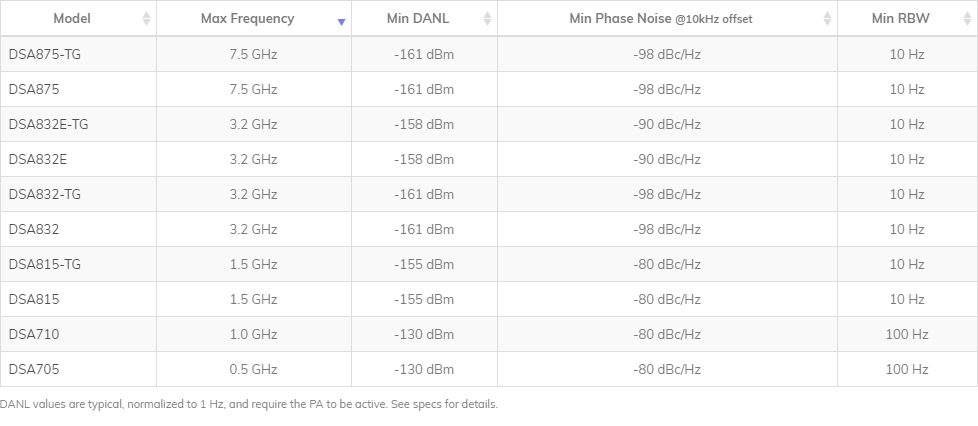

SPECTRUM ANALYZERS CONFIGURATION TABLE



RF SIGNAL GENERATORS

As Rigol's RF first signal source, the DSG3000 series offers standard AM/FM/ØM analog modulation, as well as options for I/Q modulation and I/Q baseband output. The instrument is available with maximum frequencies of either 3 GHz or 6 GHz. Featuring a high signal purity with phase noise measuring <-110dBc/Hz@20kHz (typical) and a wide output range of -130dBm to +13dBm, the DSG3000 RF signal generator has standard pulse modulation with an on/off ratio of up to 80dB, with optional pulse train generator available. The DSG3000 series also has an amplitude accuracy of <0.5dB (typical).

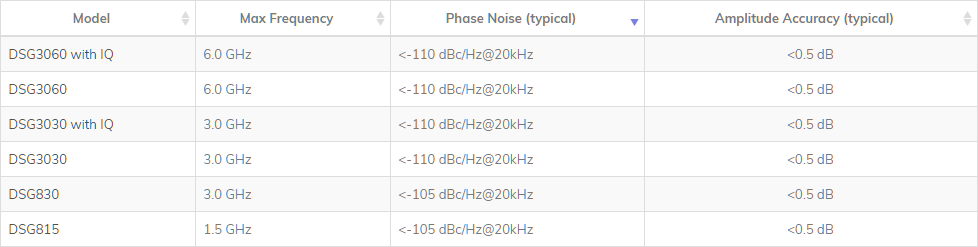

RF SIGNAL GENERATORS CONFIGURATION TABLE

DIGITAL MULTIMETERS

The DM3000 Series DMMs give reliable, cost effective, full DMM capabilities measuring DCV, ACV, DCI, ACI, Resistance (2 & 4 Wire), Capacitance, Diode Test, Frequency, and Temperature. These DMMs are designed for simple and efficient bench top use, but include software options for datalogging and remote programming from almost any interface. The DM3000 can fit any DMM application with speed, accuracy, reliability, and efficiency well beyond its price.



DATA ACQUISITION MAINFRAMES

Rigol's M300 Series data acquisition and switch system provides accurate, repeatable measurements with industry leading total system cost optimized for general purpose temperature, resistance, and voltage scanning with a breadth of modules to handle all of your DAQ system requirements. A single mainframe can scan and measure up to 128 fully differential measurements in one instrument. Automatically log data to a USB stick attached to the system or control up to 5 mainframes from a PC with a single instance of the Ultra Acquire software.

PROGRAMMABLE DC POWER SUPPLIES

The DP800 Series Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP800 Series is a family of linear power supplies systems with 3 outputs and up to 195 Watts in total. With one channel isolated users can reconfigure instruments into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features means there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.

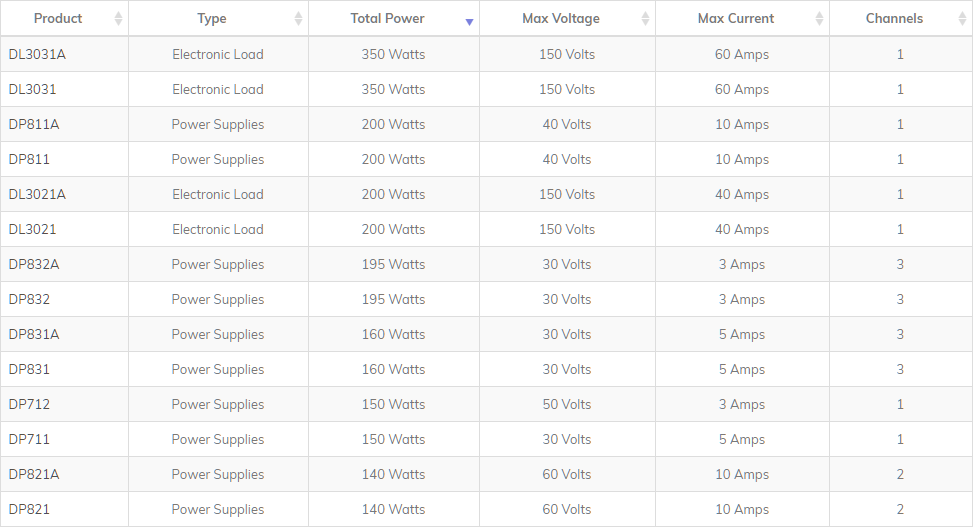

DC POWER & LOADS CONFIGURATION TABLE
