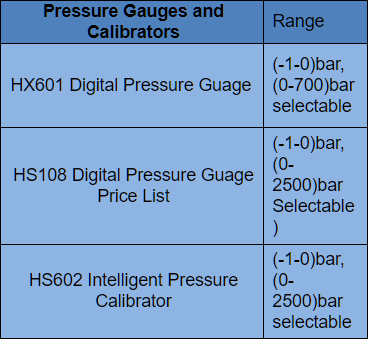

Pressure Gauges and Calibrators
- HX601
- 5-digit large LCD with backlight
- Nine pressure units selectable
- Zero point, full scale calibration function
- Adopting the special software treatment technology, it is Unnecessary to preheat.
- RS232 communication port can communicate with PC.
- Temperature compensating
- Overload alarm function
- % indication with bar graph scale for visual reference
- Stainless steel bottom connection for robustness
- Equipped with rugged aluminum alloy cover
- CE&EX approved.
- HS108
- Pressure range up to 2500 bar
- High accuracy up to 0.025%F.S
- Temperature compensating
- Large, easy to read display with 6-digit resolution
- RS232 communication port can communicate with PC
- With max and min values function
- Zero point, full scale calibration function
- Nine pressure units selectable
- Equipment with rugger ABS Plastic
- 7.4Vdc rechargeable lithium battery and special charger
- Data storing function
- Large LCD with white backlight, dual readout
- CE & EX Approval
- HS602
- Equipped with rugged ABS plastic
- Pressure-transmitting medium including air, oil, and water
- 6-digit LCD screen with backlight
- Nine pressure units selectable
- Zero point, full scale calibration function
- 7.4Vdc rechargeable lithium battery and special charger
- Overload and short circuit protection
- Light weight, small size, easy operation
- Rapid in operation, compatible with computer software
- Support Hart Version 5
- With max and min values function
- CE & EX Approved

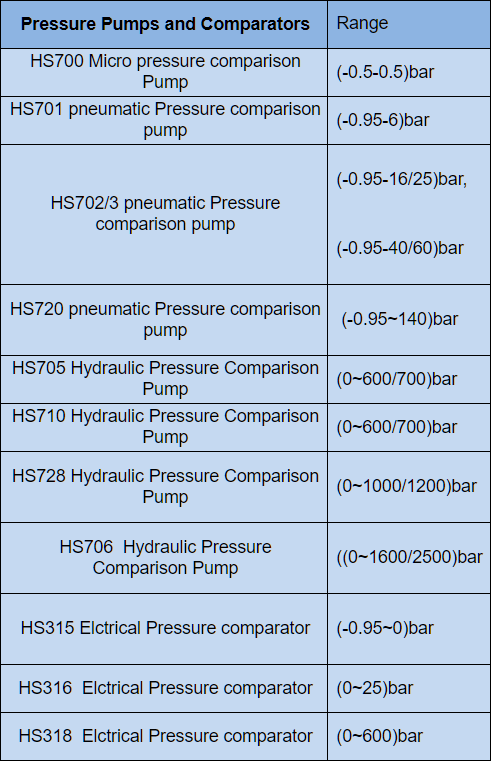

Pressure pumps and Comparators
- Automatic Pressure calibrator
- Differential (-1~1) bar
- Gauge pressure (-0.1~1) bar
- (-0.95~25) bar
- Working medium:Air
- Pressure-control stability:±0.01% F.S
- Noise detection: ≤40dB(decibel)
- Weight:6.0kg
- Dimension:298L×223W×119H (mm)
- Automatic pressure-stability time: ＜ 10s
- Fluctuation of servo control:
- superior to 0.005% F.S

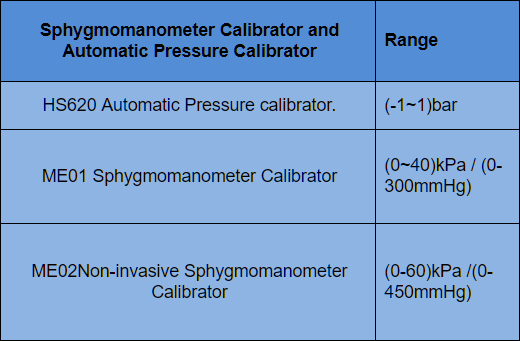

- Sphygmomanometer Calibrator
ME01 - Built in pressure source, easy to pressurization
- With F-adjust function get the exact pressure value
- The pressure value could be regulated randomly
- Pressure unit kPa & mmHg display simultaneously
- Calibrating (0-40)kPa pressure gauge
- Large LCD with back light
- Acquisition speed fast
- Simple operation,save labor
- Compact structure
- Light weight
- ME02
- Portable, easy to use in field
- With rechargeable battery
- Automatically pressurized and depressurized
- 7 inch touch-screen, external wireless mouse
- Adopt import pressure transducer and pressure
- Components
- Remaindering when the pressure value
- approaching
- Stability time set 0-60s selectable
- Voice is less than 40 decibel
- Build in adults/newborn cuff
- 18 group application, only set once time for
- permanent store
- Dimensions:300L×250W×110H (mm)
- Weight:4kg
Temperature Calibrators

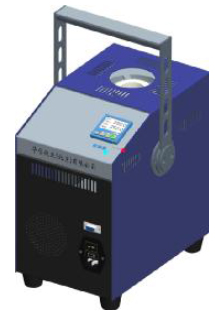

HX650 Dry block - designed by thermal conduction theory and advanced temperature control technology, supply the laboratory accuracy temperature source. HX650 is used in temperature sensor calibration for site and laboratory thermocouple as well as thermal resistance.
Calibration standard - each calibrator is calibrated against precision equipment, which is traceable to national standards, and calibration certificates are supplied with each unit.
Widely used - HX650 Dry Calibrators are widely used in petrol, metallurgy, power, military, science institute, metering fields.
Portable - Good appearance, easy to operate, low weight and small size make the calibrators ideal for “on site” calibration.
Custom-made - According to different temperature sensors calibration requirements, the HX650 could be specially made by customer requirements.
- Technical Specification
- Temperature Range: （35～650）℃
- Controller Display Resolution: 0.1℃
- Absolutely Stability(30min): ±0.05℃
- Heating: From 35℃ to 650℃：25min
- Cooling: 600℃～150℃：60min
- Calibration Volume: diameter 35mm; depth 140mm
- Standard Well Dimension: 2x Φ 4.5mm; 2x Φ 6.4mm; 1x Φ 8mm; 1x Φ
- 9.5mm;depth 145mm (could be specially made by customer requirements)
- Appearance Dimension: 275mm(Length) x 180mm(Width) x 275mm(Height) Weight: 8.5kg
